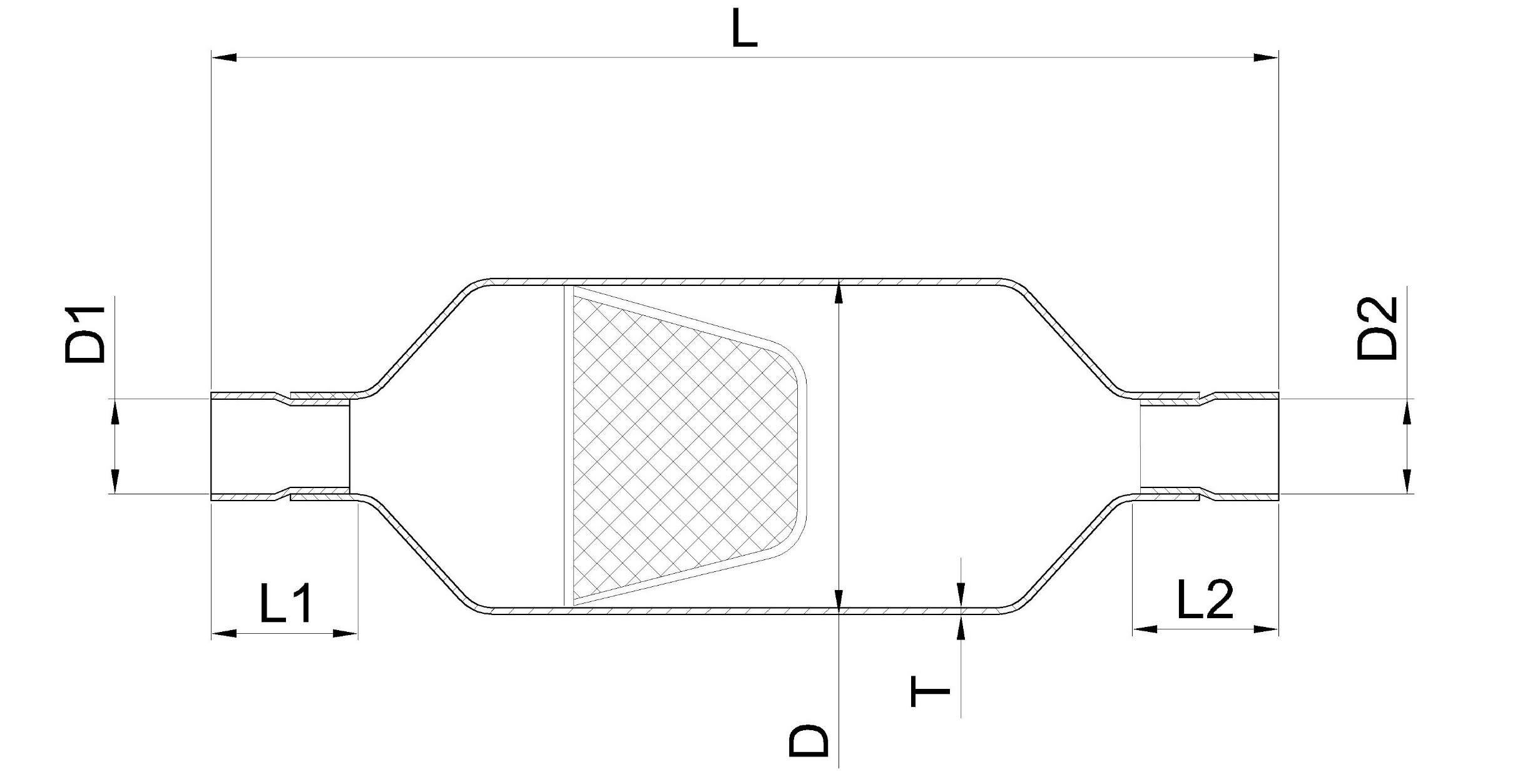

Parameter | T | D | L | D1 | D2 | L1 | L2 | Mesh count | |
Serial Number | |||||||||
1 | 0.8 | 35 | 120 | 12.7 | 12.7 | 20 | 20 | 80 | |
2 | 0.8 | 35 | 120 | 9.7 | 9.7 | 20 | 20 | 80 | |
3 | 0.8 | 35 | 120 | 12.9 | 8.2 | 20 | 20 | 80 | |
4 | 0.8 | 35 | 120 | 12.9 | 9.7 | 20 | 20 | 80 | |
5 | 0.8 | 35 | 120 | 12.9 | 12.9 | 20 | 20 | 80 | |
6 | 0.8 | 35 | 120 | 16 | 16 | 20 | 20 | 80 | |
7 | 1 | 40 | 120 | 12.7 | 12.7 | 20 | 20 | 80 | |
8 | 1 | 40 | 120 | 12.9 | 9.7 | 20 | 20 | 80 | |
9 | 1 | 40 | 120 | 12.9 | 12.9 | 20 | 20 | 80 | |
10 | 1 | 40 | 120 | 16 | 16 | 20 | 20 | 80 | |
11 | 1 | 40 | 120 | 19.2 | 19.2 | 20 | 20 | 80 | |
12 | 1 | 40 | 120 | 22.2 | 22.2 | 20 | 20 | 80 | |
13 | 1 | 60 | 170 | 19.2 | 19.2 | 20 | 20 | 80 | |
14 | 1 | 60 | 170 | 22.2 | 22.2 | 20 | 20 | 80 | |
15 | 1 | 60 | 170 | 25.6 | 25.6 | 20 | 20 | 80 | |
16 | 1 | 60 | 170 | 28.2 | 28.2 | 20 | 20 | 80 | |
