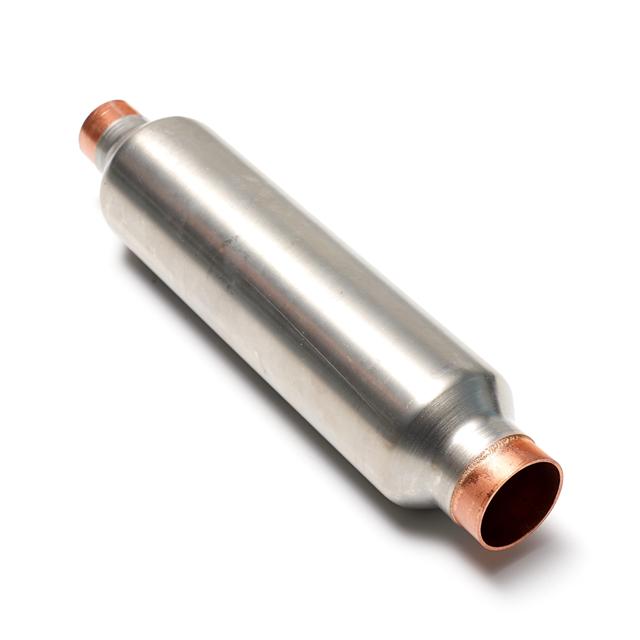

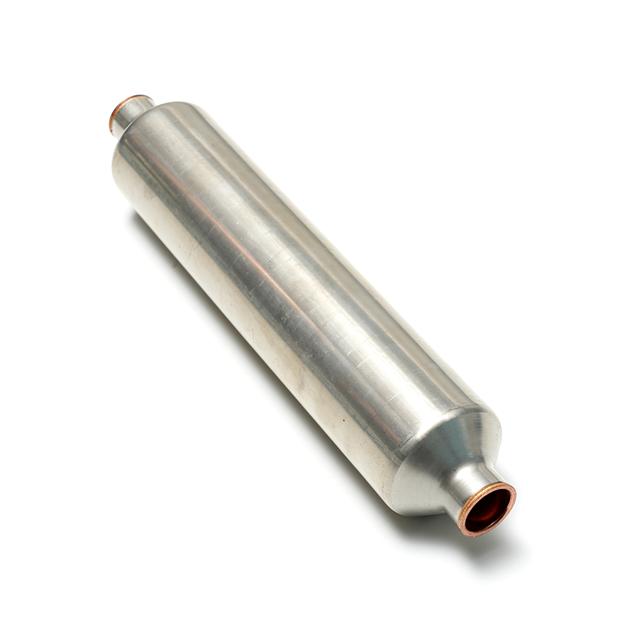

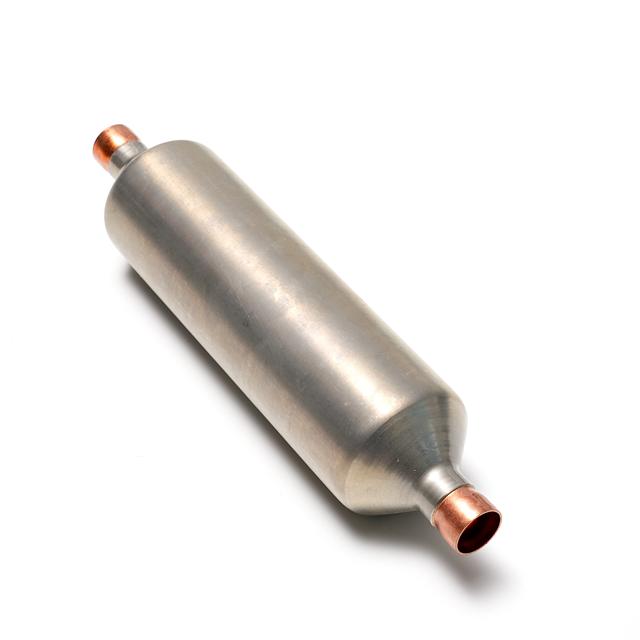

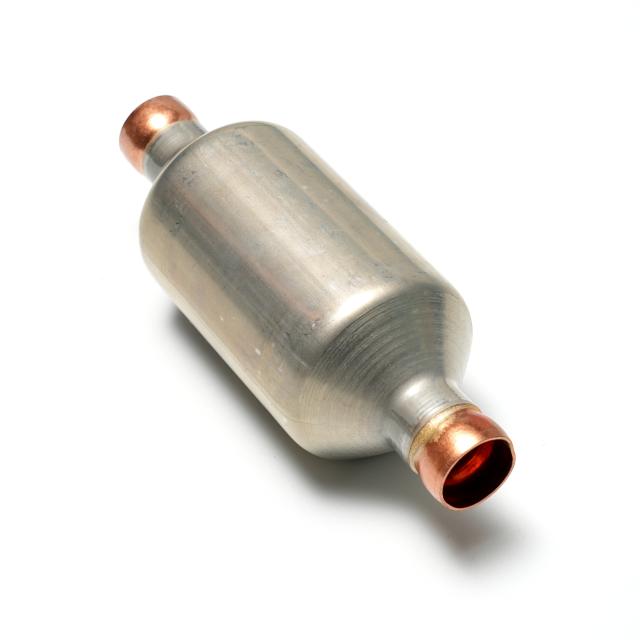

Product parameters of SUS304 stainless steel muffler:

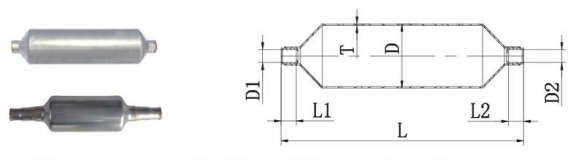

Serial number | D | D1 | D2 | L | L1 | L2 |
1 | 35 | 8.10 | 8.10 | 143 | 9 | 9 |
2 | 25 | 8.10 | 8.10 | 135 | 9 | 9 |
3 | 40 | 12.9 | 12.7 | 150 | 9 | 9 |
4 | 51 | 12.9 | 12.9 | 150 | 9 | 9 |
5 | 60 | 16.2 | 16.2 | 200 | 9 | 9 |
Note:Other sizes can be customized according to customer requirements.
