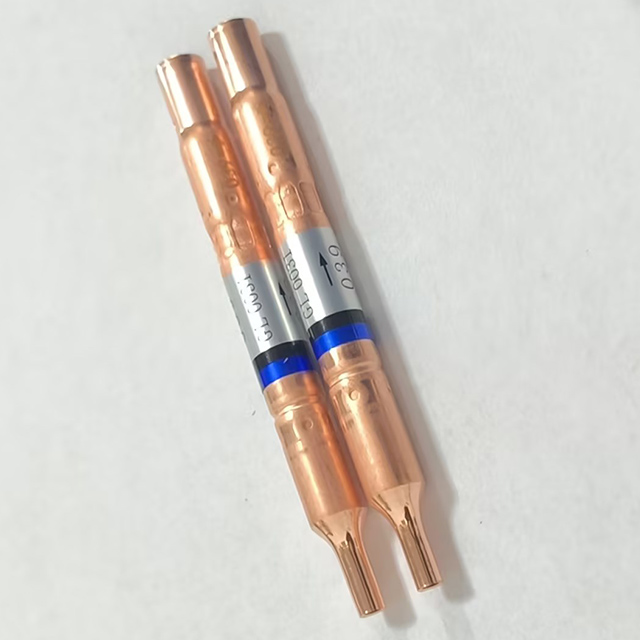

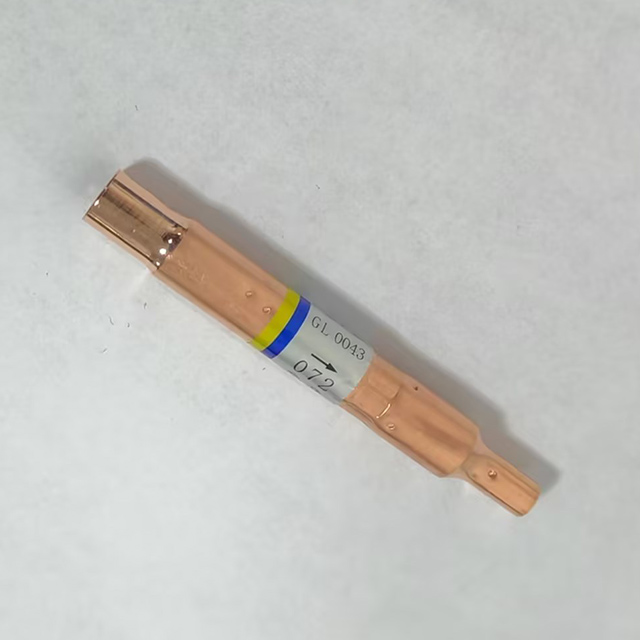

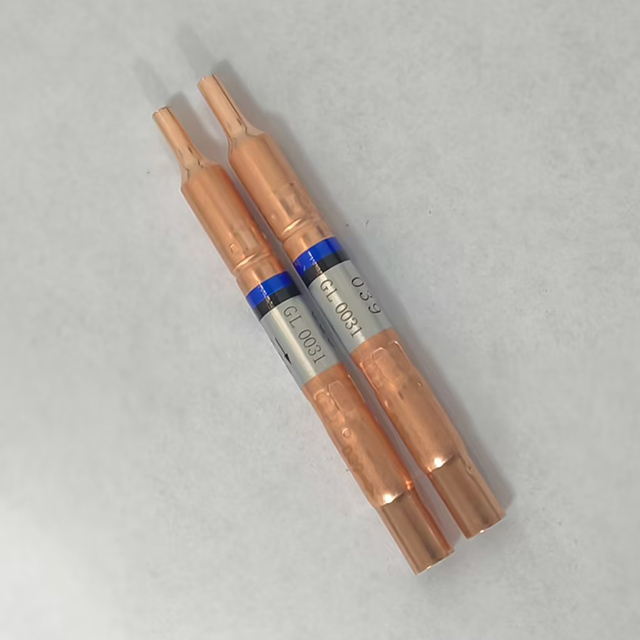

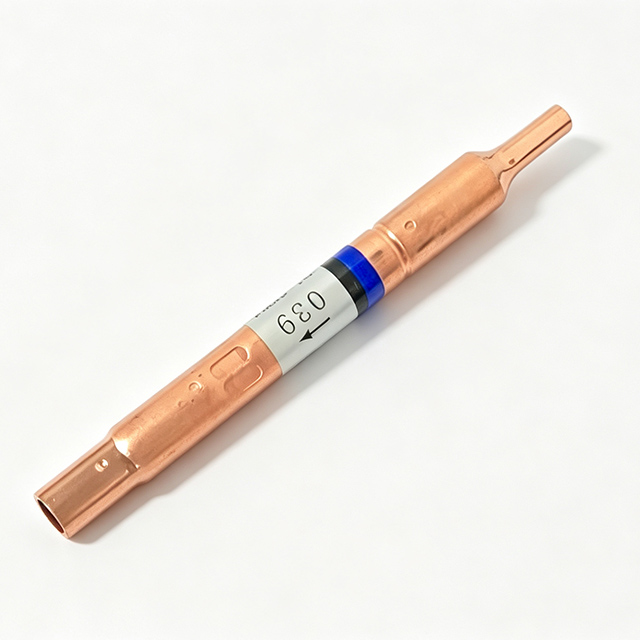

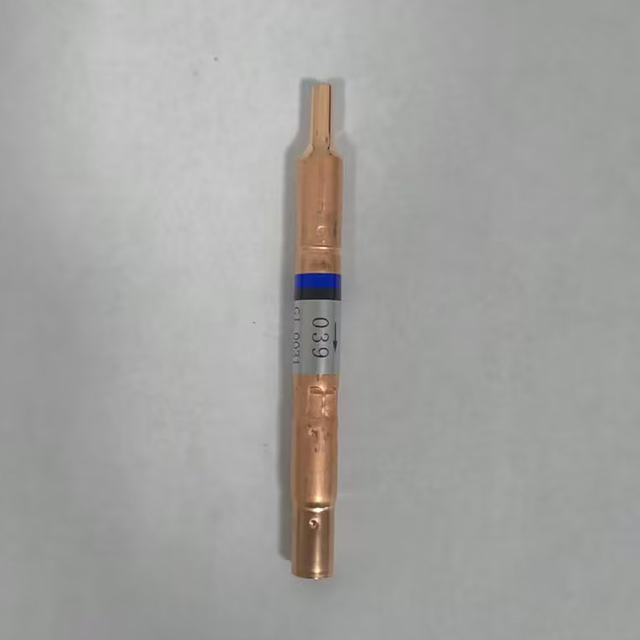

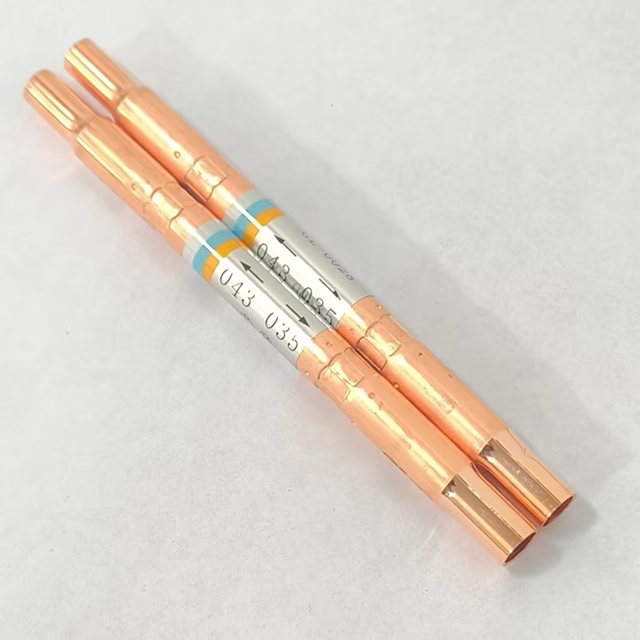

Throttle valve | ||
Serial number | Name | Material |
1 | Copper pipe | TP2Y2Φ9.52×0.7 |
2 | Filter net | SUS304 |
3 | Valve seat | C3771 |
4 | Spool1 | C3604 |
5 | Spool2 | C3604 |

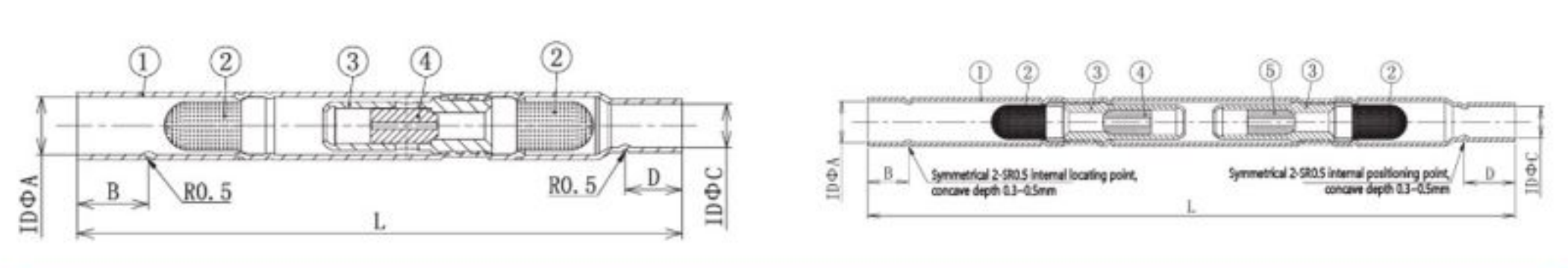

Model and product specifications:
Type | Copper pipe specifications | Valve core specifications | Inner diameter of the pipe | Inner diameter of the pipe | Length of positioning point | Inner diameter of the pipe | Length of positioning point | Total length | |
A | C | B | C | D | L | ||||
Pipe type | Uni-directional pipe | Φ9.52 | 024~090 | 8.1 | 6.2/6.5 | 10 | 6.2/6.5 | 8 | 85 |

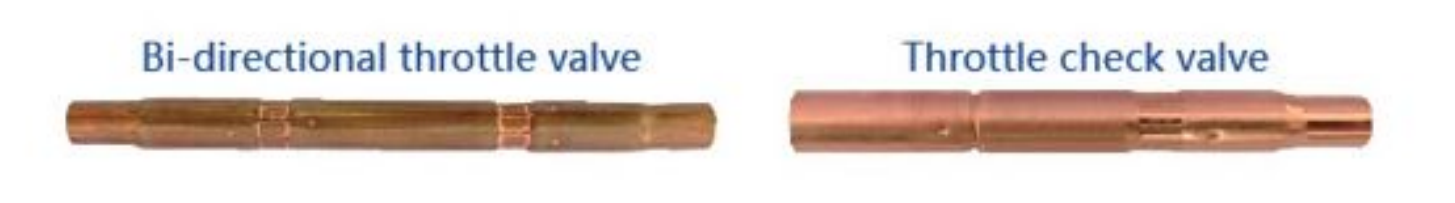

Bi-directional pipe | 128 | ||||||||
Suitable for various models of air conditioners,used for air conditioning throttling purposes.
