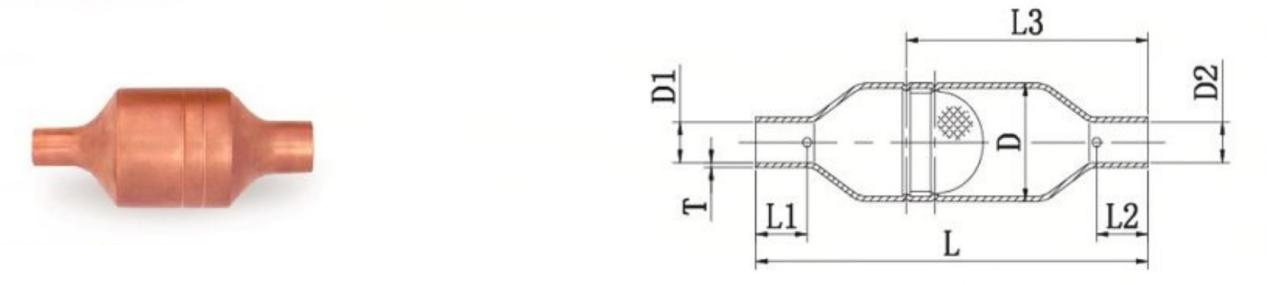

Product parameters:
Serial number | D | D1 | D2 | L | L1 | L2 |
1 | 9.52 | 3.2 | 6.5 | 55 | / | 8 |
2 | 12 | 6.2 | 27 | 58 | 9 | / |
3 | 12 | 6.2 | 3.0 | 58 | 9 | / |
4 | 16 | 8.2 | 3.15 | 60 | 9 | / |
5 | 16 | 7.2 | 9.7 | 65 | 10 | 10 |
6 | 19 | 9.7 | 9.7 | 80 | 10 | 10 |
7 | 19 | 6.2 | 8.2 | 67 | 11 | 11 |
8 | 22 | 9.7 | 6.2 | 65 | 10 | 10 |
9 | 25 | 9.7 | 3.8 | 86 | 11 | / |
10 | 25 | 6.2 | 6.2 | 95 | 10 | 10 |
11 | 32 | 19.2 | 19.2 | 80 | 12 | 12 |
12 | 35 | 9.7 | 9.7 | 95 | 10 | 10 |
13 | 35 | 16.2 | 16.2 | 134 | 14 | 14 |
14 | 35 | 19.2 | 19.2 | 134 | 14 | 14 |
15 | 35 | 22.2 | 22.2 | 136 | 15 | 15 |
16 | 54 | 15.2 | 16.2 | 139 | 13 | 13 |
Note: Other sizes can be customized according to customer requirements.

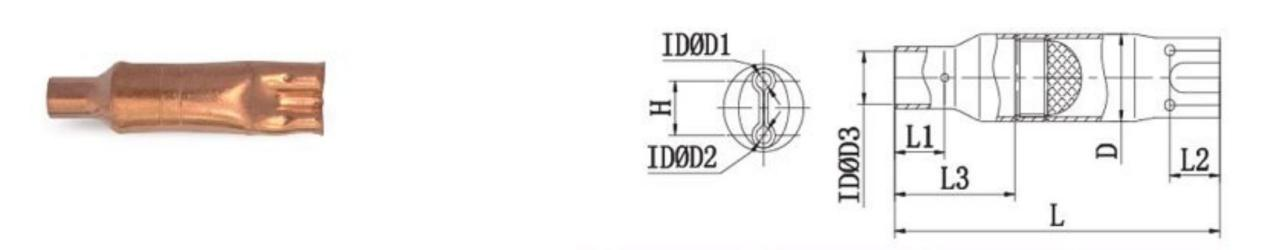

Product parameters:
Serial number | D | D1 | D2 | D3 | L | L1 | L2 |
1 | 16 | 3.0 | 3.0 | 8.2 | 65 | 10 | / |
2 | 16 | 3.15 | 3.15 | 9.7 | 65 | 10 | / |
3 | 16 | 6.20 | 6.20 | Outer diameter9.5 | 65 | / | 10 |
4 | 16 | 6.2 | 2.7 | Outer diameter9.5 | 65 | 10 | / |
5 | 16 | 6.2 | 3.8 | 6.2 | 65 | 10 | 9 |
6 | 25 | 3.0 | 3.0 | 8.2 | 95 | 10 | / |
7 | 25 | 9.7 | 6.2 | 9.7 | 86 | 10 | 11 |
Note: Other sizes can be customized according to customer requirements.
