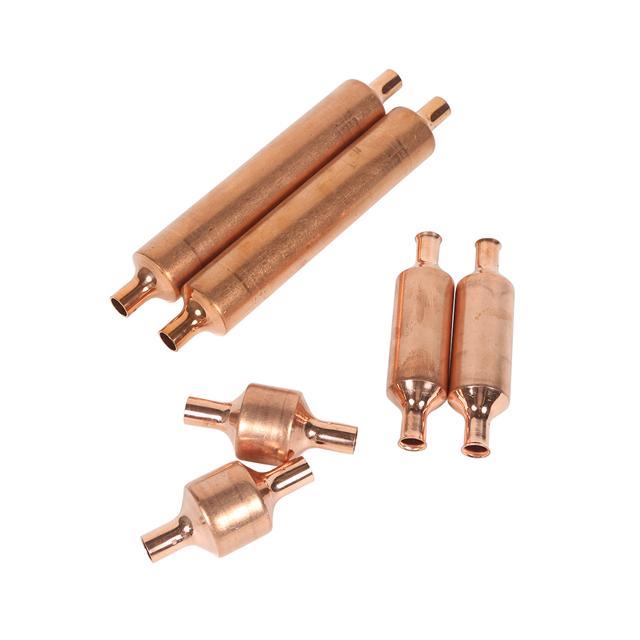

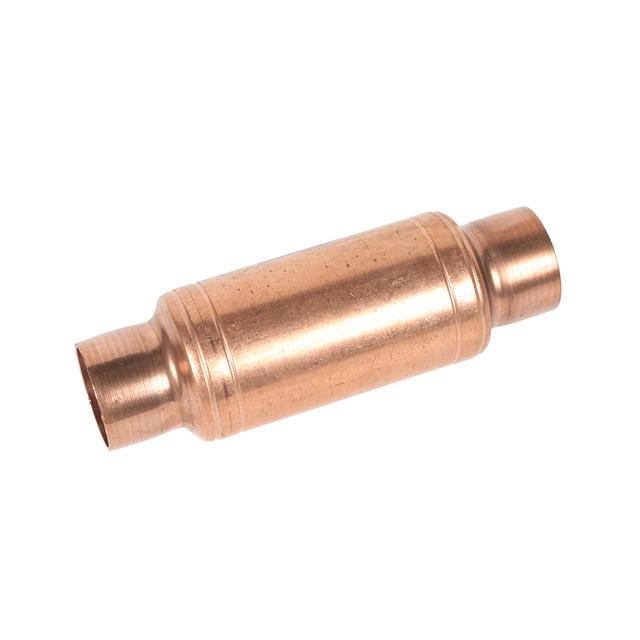

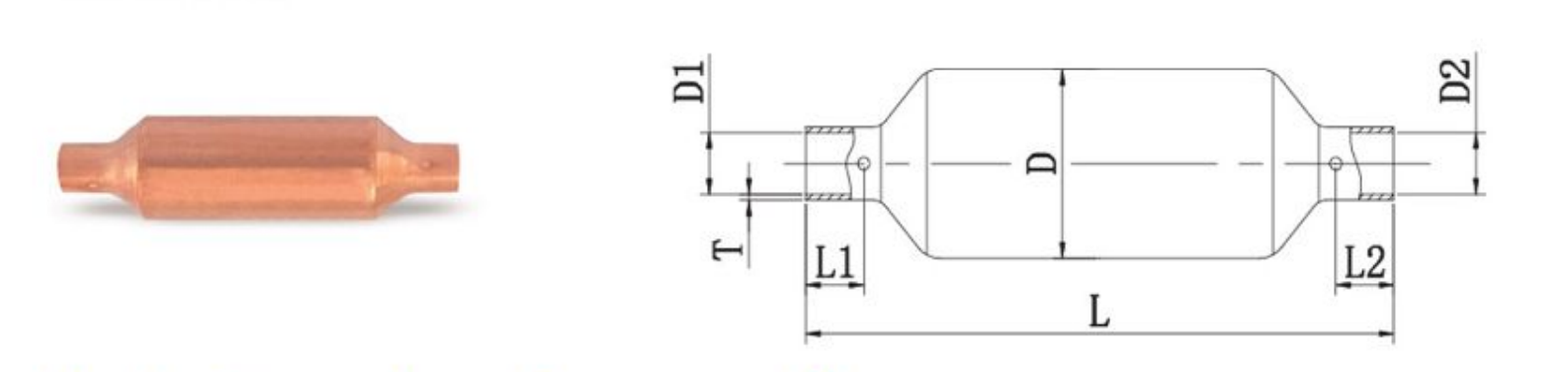

Product parameters of copper muffler:
Serial number | D | D1 | D2 | L | L1 | L2 |
1 | 25.4 | 9.7 | 9.7 | 150 | 8 | 8 |
2 | 31.8 | 12.8 | 12.8 | 75 | 9 | 9 |
3 | 40 | 8.1 | 8.1 | 141 | 10 | 10 |
4 | 50 | 12.9 | 12.7 | 200 | 10 | 10 |
5 | 19 | 7.2 | 7.2 | 45 | 6 | 6 |
6 | 23 | 9.7 | 9.7 | 160 | 10 | 10 |
7 | 25 | 8.2 | 8.2 | 150 | 10 | 10 |
8 | 30 | 9.7 | 9.7 | 102 | 10 | 10 |
9 | 35 | 9.7 | 9.7 | 150 | 10 | 10 |
Note: Other sizes can be customized according to customer requirements.
